Product Overview
MEGAMF4000 Series is a insertion type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 150mm to 3000mm.
MEGAMF4000 Series is widely used for tap-water, waste water, food & beverage, Pulp & Paper and many other industrial fluid.

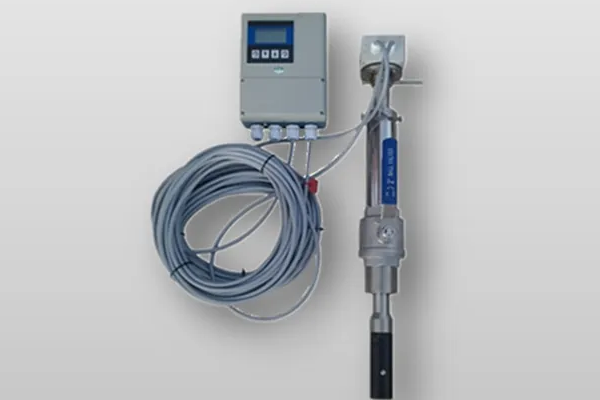

MEGAMF4000 Series electromagnetic flowmeter could be used in compact or remote model with 411B, 511B or 211B series converter
- Light and compact version
- Flow Velocity range: 0.1-15m/s
- Suitable for permanent or temporary installation
- Price virtually independent on pipe diameter
- Good accuracy over wide operating flow range
- Stable calibration and reliable operation
- With forward/Reverse flowrate measurement function
- AC high-frequency switching power: 85-250VAC
- DC 24V switching power: 20-36VDC
- Modbus, HART, GPRS, PROFIBUS Communication
- Display in instantaneous flow and accumulated flow
Specifications
| Sizes | 150-3000mm | | Measuring Range | 0.1-15m/s | | Temperature | -20~+120? | | Process Connection | Ball valve, Flange | | Accuracy | ±1.5%, ±2.0%, ±2.5% | | Material | Protection tube: SS304 (Standard), SS316 (Option) Mounting base: SS304 (Standard), SS316 (Option) Screw: SS304 Ball valve: SS304 (Option) | | Conductivity | must be ? 20 µS/cm | | Electrode & Grounding | Stainless Steel #316L / Hastelloy B / Hastelloy C / Titanium / Tantalum / Platinum -iridium alloy | | Display | Flow rate, flow velocity, percentage, Total flow | | Grounding Resistance | Must be less then 10 ? | | Protection | IP 65 | | Ambient Tempearture | -20~60 °C | | Cable entry | M20x1.5 | | Rated pressure | 1.0MPa, 1.6MPa, 2.5MPa
|
|
Installation
pic
