Product Overview

MEGACF-UT Coriolis flowmeter consists of two parallel tubes that are made to oscillate using a magnet. These oscillations are recorded by sensors fitted at the inlet and outlet of each tube. In a no-flow state, the oscillations are synchronized, i.e. in phase with each other, since there is no mass exerting any force on the tubes. On the other hand, any fluid, or gas flowing through the tubes generates Coriolis forces, causing the tubes to twist in proportion to the mass flow rate of the medium.

High accuracy and high stability over a wide range, 0.1%, 0.2%, 0.5%
No time drift or temperature drift
Size from 10mm to 200mm
Wide temperature range -150 deg C to 300 deg C
Excellent for high pressure, up to 26MPa
Easy to install
Available with pulse, 4-20mA, RS485 and HART
Measurement of mass flow, density, temperature, volume flow
Measurement and display of percent water-cut for oil/water mixtures
Higher Sampling and Digital Filtering

Specification

Flow range	10~1000000kg/hr
Process connections	Flanged (ANSI, DIN, Tri-Clamp, Thread)
Line size	10~200mm
Process temperature	-50~125?(integral), -50~200?(remote), -50~350?(high temp), -200~125?(low temp)
Tube geometry	U-Tube
Accuracy	±0.2% of reading(std), 0.5% or 0.1% (opt)
Repeatability	±0.075% of reading
Frequency	10-2000 Hz
Engineering units (Mass):	kg, lb, ton
Display:	Color Graphic OLED
Engineering units (Temp.)	°C, °F
Engineering units: (Volume)	m³, Liter, US Gallon, Imperial Gallon
Zero stability	0.1% full-scale
Ambient temperature	-20~60 °C
Zero Drift (%FS / °C)	0.005
Max working pressure	1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa, 10MPa, 16MPa, 25MPa
Measuring tube material	SS316L
Power supply	(18~36)VDC or 85~260)VAC
Housing material	SS304
Outputs	4-20 mA, 0-10 kHz pulse, RS485
Communication	RS485, HART
Density measuring range	0.2~2.0 g/cc
Density accuracy	0.001 g/cc)
Temperature accurac	up to ±1°C
Protection	IP67
Explosion	standard type is explosion

Installation

If the medium contains solid particles, mount the meter as shown in position “A”, and in all other cases mount the meter as shown in position “B”. Vertical Mounting is recommended, if the medium contains gas bubbles and solid particles.

pic.

PRODUCT DETAILS

Product Name:

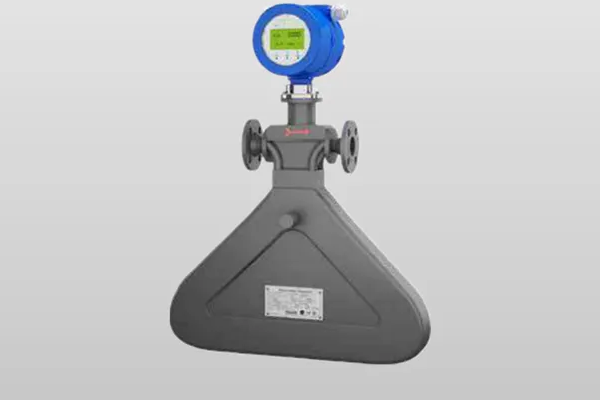

U-tubes Coriolis Mass Flowmeter
Product Series:
UT Series
Short Description:
MEGACF-UT Coriolis mass flowmeters are comprised of two tubes that are arranged in the shape of the letter ‘U’, a magnet and coil assembly, and sensors at the inlet and outlet of the tubes.

U-tubes Coriolis Mass Flowmeter (MEGACF-UT)
