Product Overview

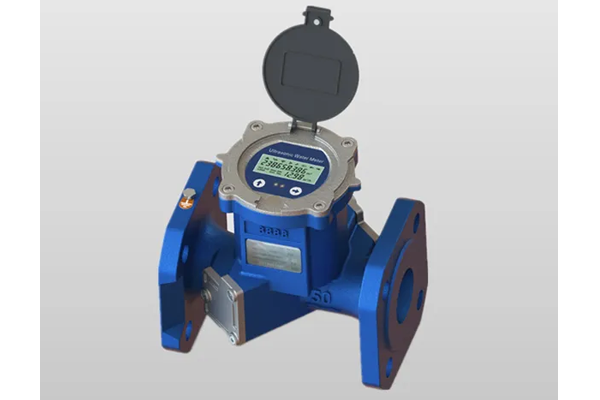

MEGA-T3-1 dual channel ultrasonic water meter is designed and developed according to ISO4064-1:2005, GBT778-2007, JJG162-2009. All parts of the meter achieve to IP68, enable the meter work in any severe environment.
- Designed strictly according to ISO4064-1:2005, GBT778-2007, JJG162-2009
- Low starting flow rate (Q1), avoid missing the small flow rate
- No pressure loss
- IP68 protection level
- No rotate abrasion, long service time
- Support multiple output modes
- Size from DN15 to DN300
img-desc1
img-desc2
Specifications
| Meter size | DN15 to DN300 | | Medium temperature | 0.1-30? | | Ambient conditions | Temperature?-10~45??Humidity?100%?RH? | | Operating pressure | 1.6MPa(standard) / 2.5MPa(option) | The sensitivity of
upstream flow field | U3 | The sensitivity of
downstream flow field | D0 | Climatic and mechanical
environment class | C class | Electromagnetic
compatibility class | E2 class | | Communication Interface | RS485/USART/Infrared | | Output Signal | Two way OCT output/TTL pulse output/4-20mA output | | Power supply | Built-in Lithium battery(3.6V) / External DC 8~36V | | Protection Class | IP68 | | Digital Display | Multi line 9 digital LCD display accumulative flow,
4 digital display for instantaneous flow, state prompt and
units | | Data Storage | EEPROM/FLASH | | Measurement Cycle | Measuring?1 times/second(std), 2~4 times/second (opt?
Verification?4 times/second | | Power Consumption | ?2.7AH/Year, 6 years life expectancy |
|
Flow Range
Dimension
