Product Overview

The MEGA-TMF300-P Series is the top selling meter in our Product Line. The MEGA-TMF300-P Series thermal gas mass flowmeter features a bright, high contrast display of flow rate and temperature. It is powered by 24VDC or 220VAC.

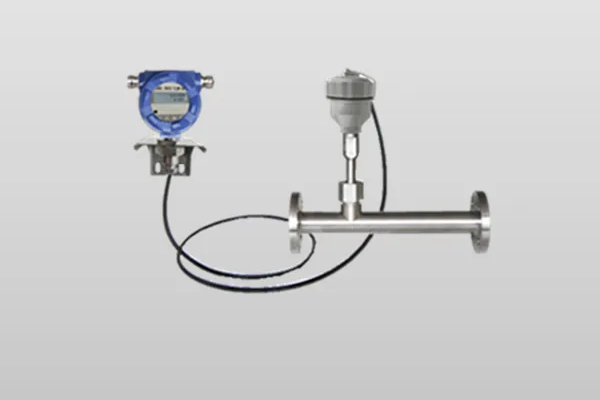

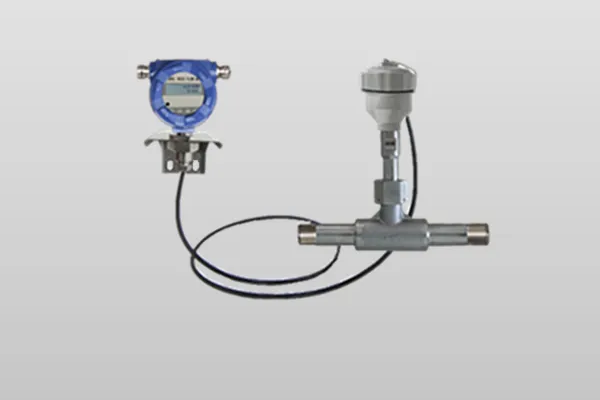

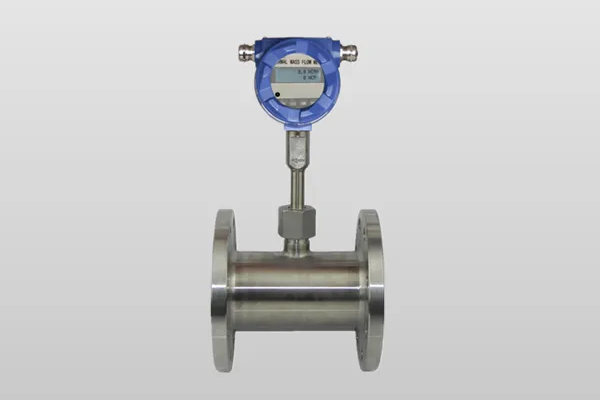

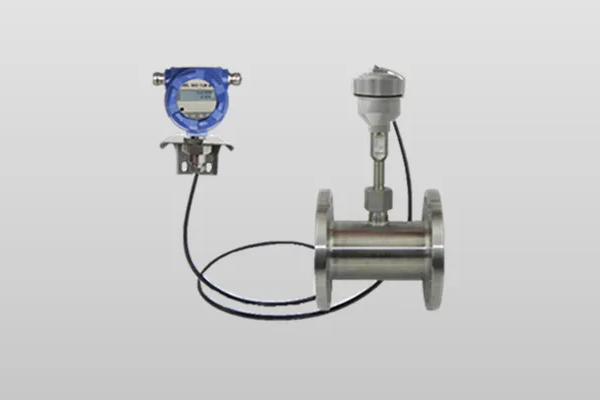

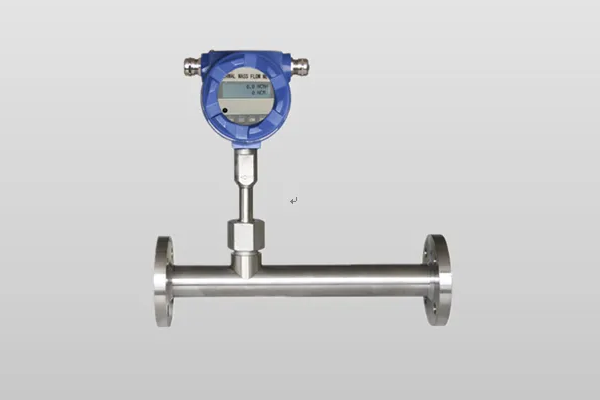

The MEGA-TMF300-P Series thermal gas mass flowmeter is offered in Integral or Remote style. Specify any standard probe length of flow body size. It has a 4-20mA output as well as a pulse output of totalized flow. In addition, MEGA-TMF300-P supports full Modbus compliant RS485 RTU communication.

Isolated 4-20mA output and pulse output
Modbus compliant RS485 RTU communications or HART
Available in 220VAC or 24VDC
Measures process gas flow rate/total flow and temperature
Insertion probes: for 2’’ to 80’’ pipe?
Wide measurement range
Flow accuracy for gases: ±1.0%
Working temperature can be up to 350?
It has more compact design, which means smaller enclosure and thinner insertion tube probe
Wide Turndown ratio 100:1
Cost-effective model

Specifications

Line Size	15-2000mm
Velocity range	0.1~120Nm/s
Accuracy	±1.0%
Process temprature	Standard: -20~+150?, Option: -25~+350?
Rated pressure	1.6MPa (standard), 2.5MPa, 4.0MPa, high pressure can be customized
Turn down ratio	over 100:1
Response speed	1s
Structure	Compact or Remote
Sensor material	Standard: SS316L, Option: Hastelloy
Didsplay	Instantaneous flow, Total flow, Fluid temp, Cumulative running time
Measuring unit	NCMH(Nm3/h), KGH(kg/h), NLPM(NL/min), KGM(kg/min)
Signal output	4-20mA (std), Pulse (opt)
Communication	Modbus compliant RS485 RTU, HART
Power supply	24VDC or 220VAC (power consumption is less than 10W)
Explosion	ExdIICT4Gb
Protection	Transmitter IP67, Sensor IP68
Process connection	Thread, Flange

PRODUCT DETAILS

Product Name:
Inline Thermal Gas Mass Flowmeter
Product Series:
Series TMF300P Pipe Type
Short Description:
Thermal mass flowmeter, also known as a thermal dispersion or immersible mass flowmeters, are precision instruments used to measure the mass flow of fluid flowing in a closed channel like a pipe or a duct.

Inline Thermal Gas Mass Flowmeter (MEGA-TMF300-P)
