Product Overview

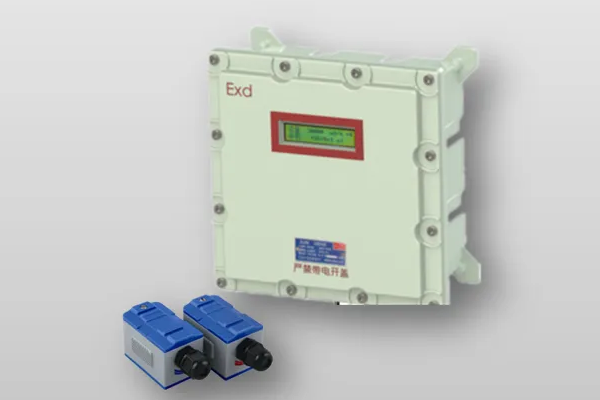

MUF-2000SD Ultrasonic Flow meter is designed to measure the fluid velocity of liquid in a full or closed pipe. It is a measurement system which is both easy to install and use. It is a fixed mounted, transit-time ultrasonic flow meter for non-invasive liquid measurement. Our microprocessor based, user friendly, field programmable flow measurement technique allows no interruption of the process flow and has low installation costs.
Specifications
| Principle | Transit-time ultrasonic flowmeter | | Accuracy | ±1% | | Display | 2 Line LCD with illumination, support English, Italy and Turkish | | Signal output | - 1 way 4-20mA, electric resistance 0-1K, accuracy 0.1%
- 1 way OCT pulse output (pulse width 6-1000ms, default is 200ms)
- 1 way relay output
| | Signal input | 3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temp, pressure and liquid level
Connect the temperature sensor PT100 for the heat and energy measurement | | Communication | Insulate RS485, support Modbus | | Special cable | - Twisted-pair cable, generally the length below50m
- Select the RS485, transmission distance can be over 1000m
| Pipe
installation condition | - Pipe material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
- Pipe diameter: 15-6000mm
- Straight pipe: upstream 10D, downstream 5D, 30D from the pump
| | Measuring medium | Single liquid can transmit sound wave, turbidity is no more than 10000ppm and less bubble, flow rate is 0~±10m/s, such as- Water (hot water, chilled water, city water, sea water, waste water)
- Sewage with small particle content
- Oil (crude oil, lubricating oil, fuel oil, etc)
- Chemicals like alcohol
- Plant effluent
- Beverage
| | Medium temp | Sensor: -30~+90deg C (standard), -30~+160deg C (option) | | Ambient condition | Ambient temperature for converter: -20~+60deg C
Humidity: Converter 85%RH | | Power supply | 8-36VDC or 85-264VAC | | Power consumption | 1.5W | | Protection | Converter: IP65, Sensor: IP65(standard)/IP68(optional) | | Data storage | SD card timing storage setting parameters and measurement results |
|
Sensor Type
